Drytech(Guangzhou)Technology Co., Ltd Since 2006

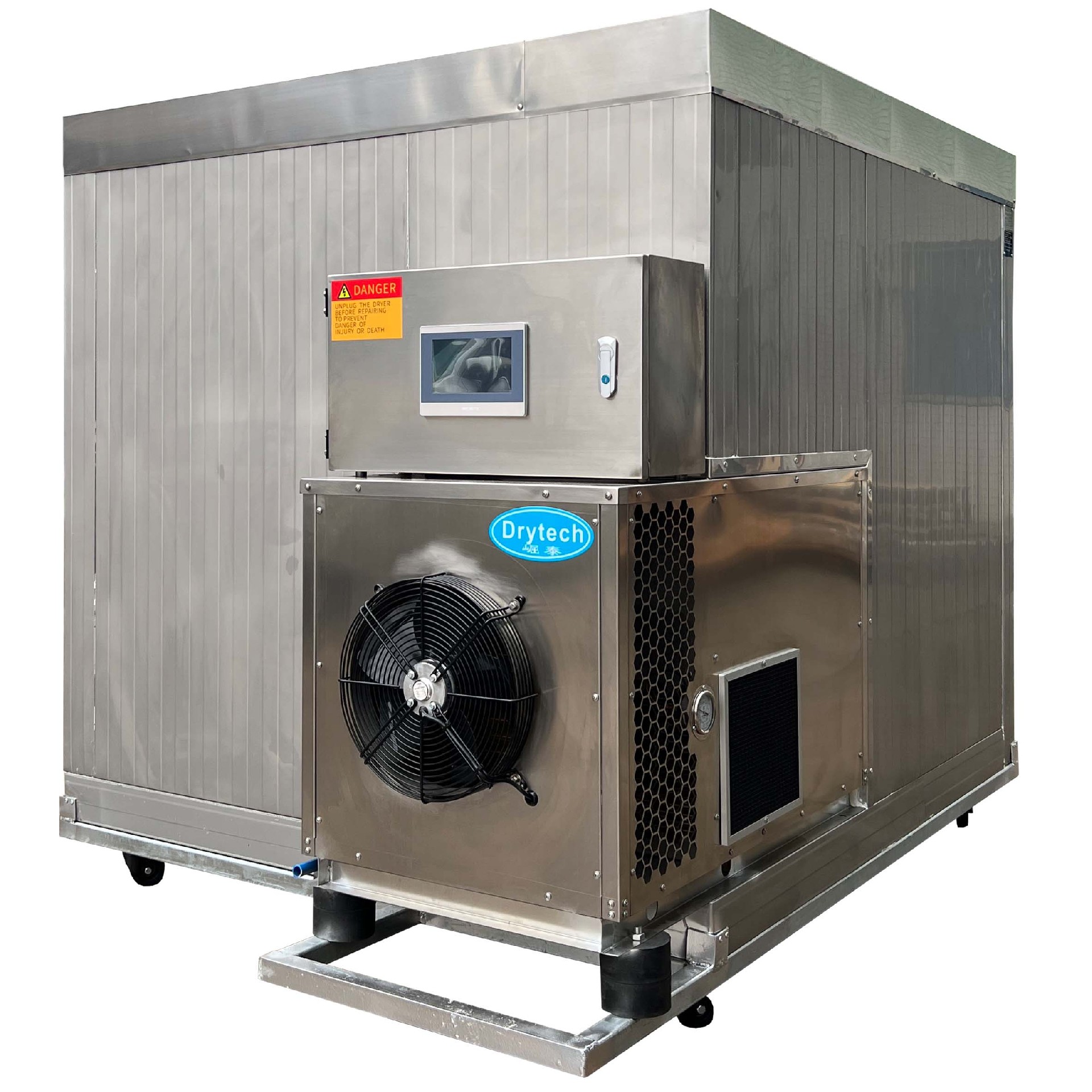

DT100H

DT100H

1.Touch Screen Control

2. Remote control by WiFi(optional)

3. Stainless body

4. High temperature and high humidity resistant hot air circulation fans

4. Stainless steel Fan Racks

5. Stainless steel trolley and trays

6. Electronic type humidity sensor

7. 10 sections setting, can set different temperature with different humdity and different drying time for different section.

8. 36pcs trays, tray size 800*600*15mm or 800*600*50mm, each tray can loading 3-5KG raw materials.


◇◆  Product Features

Features of a Heat Pump Dryer:

Easy to use, no assembly required

Just need connecting power cables only.

Energy Efficiency

Uses a heat pump system to recycle and reuse heat, reducing energy consumption by up to 50-70% compared to traditional drying systems.

Low Temperature Drying

Operates at lower temperatures (typically 40-75°C), preserving the quality, color, and texture of sensitive materials like food, herbs, or pharmaceuticals.

Environmentally Friendly

No direct combustion or emissions, making it eco-friendly and ideal for applications requiring strict environmental standards.

Uniform Drying

Equipped with advanced airflow systems and precise temperature controls to ensure even drying across all materials.

Wide Application Range

Suitable for drying various products, including fruits, vegetables, seafood, meat, herbs, textiles, and industrial materials.

Closed-Loop System

Minimizes moisture release into the surrounding environment, maintaining a clean and controlled workspace.

High Moisture Removal Efficiency

Effectively removes moisture from materials while retaining their original nutrients, flavor, and quality.

User-Friendly Design

Features programmable control panels, adjustable temperature and humidity settings, and automated drying cycles for easy operation.

Durability and Longevity

Made from high-quality, corrosion-resistant materials, ensuring long-term use with minimal maintenance.

Cost-Effective Operation

Although the initial investment might be higher, the energy savings and low maintenance costs result in reduced operational expenses over time.

Customizable Solutions

Available in various sizes and configurations to meet specific industrial or commercial drying needs.

Safety Features

Includes built-in safety systems such as temperature control, pressure sensors, and overheat protection to ensure safe operation.

Heat pump dryers are particularly favored in industries like food processing, agriculture, pharmaceuticals, and textiles for their efficiency, reliability, and ability to maintain the quality of the dried products.

◇◆  Product Parameter

Heat Pump Dryer

Model

DT100H

Power   input

2.1KW

Electric   heater

3.0KW

Power   supply

220V/1PH   50/60HZ

Rated   current

24.0A

Maximum   current

29.0A

Heating   capacity

4.5KW

Cooling   capacity

3.5KW

Level of   protection

IPX4

Dehumidify   capacity

4.0L/H

Suction   Max. pressure

≤0.75MPa

Exhaust   Max. pressure

≤3.0MPa

Noise

≤75dB(A)

Hot air   flow

4800-8850m³/H

Protection   Against electric shock

I

Certification

CE

Refrigerant

R134A   1.5KG

Warranty

1 Year

Heat pump   size

1010x610x662mm

Chamber   size

L1655xW1545xW1500mm

Whole Dimension

2040x1545x1500mm

Packing   size

2230x1600x1670mm

Weight

585KG

Serial No.

/

Production   date

/

Drytech(Guangzhou)Technology Co.,Ltd.


◇◆  Product Accessories

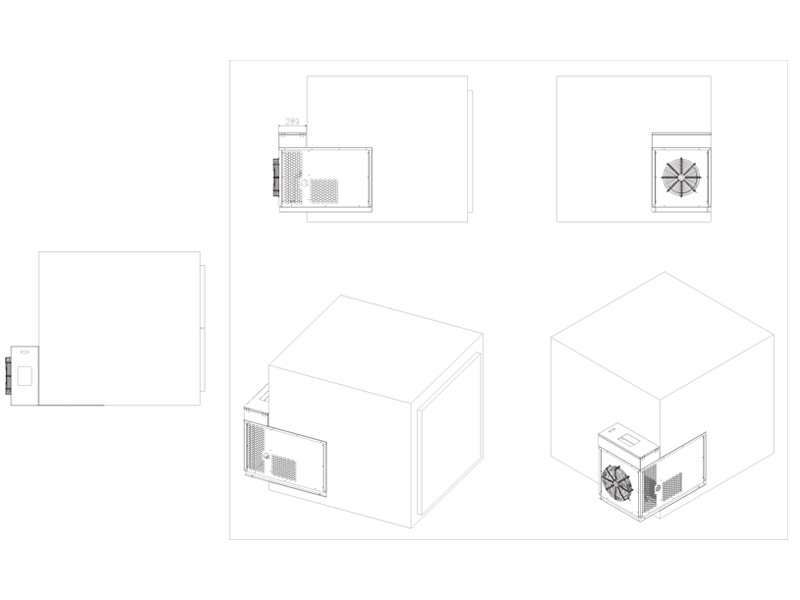

DT100H CAD库房整体图.jpg

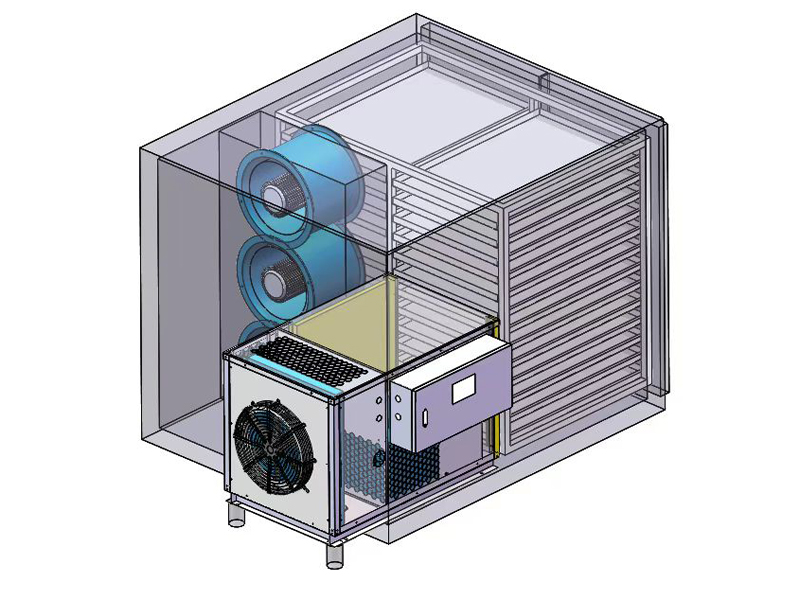

DT100H 3D 图.jpg
