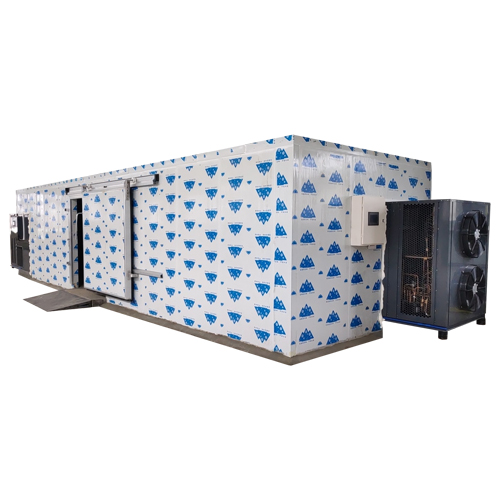

DT1200HD

DT1200HD

1.Touch Screen Control

2. Remote control by WiFi(optional)

3. 100mm thickness Polyurethane panels, good heat insulation.

4. High temperature and high humidity resistant hot air circulation fans

4. Stainless steel Fan Racks

5. Stainless steel trolley and trays

6. Electronic type humidity sensor

7. 10 sections setting, can set different temperature with different humdity and different drying time for different section.

8. Detachable chamber design, saving transportation charges.

9. Easy assemble, packing with design drawing, and will send oline installation videos.

◇◆  Product Features

Fish dryer, Drytech fish drying machine,Drytech fish dehydrator

Fish is abundant in most waters. They can be found in almost all aquatic environments, from alpine streams to the deepest ocean abyss and even the depth of the sea floor (for example, salmon and trout), although 25% of the deepest oceans are not documented. Fish have 33,600 recorded species and have greater species diversity than any other vertebrate population.



Fish is an important resource for humans all over the world, especially as food. Commercial and subsistence fishermen catch fish in wild fisheries or fish in ponds or marine cages. They are also caught by recreational fishermen, raised into pets, raised by fish farmers and exhibited in public aquariums. Fish has played a role in culture since ancient times. It is both a god, a religious symbol, and the subject of art, books and movies.

At present, there are many types of dried fish, such as marine fish and freshwater fish. Compared with freshwater fish, the quality of marine fish is preferred because of its small size and adjustable temperature requirements. In addition to traditional crafts, the sun is dried. There are many types of drying equipment on the market. There is no standard for each type of drying equipment. The color and nutrients of the dried fish are also uneven. If you use coal boilers or oil boilers and wood-burning equipment to dry, Food is very unsanitary, so it has not been applied. However, with the development of science and technology, the Rising Thai high-temperature heat pump drying and dehumidifying machine has been applied in a natural way, which solves the troubles of the above-mentioned traditional dryers, which are unsanitary, energy-consuming and require a large amount of labor. Dry drying of fish should pay attention to the following problems. The temperature should not be too high in the early stage to avoid the high temperature affecting the quality after drying. The fish generally has a large water content. In addition, fat and oil are present in the fish, and dehydration is difficult. Therefore, it is very important to control the rate of dehydration. The color of the dried fish is very important; keep a certain amount of air during the drying process to avoid water vapor staying on the surface of the material. Selection of dried fish dryer:

At present, there are several air-drying machines on the market, open-loop type, closed-loop type and dehumidifiers. The Thai-Thai dryers will advise customers to choose the right model for different fishes and sizes. Generally, dried anchovies, shrimps, etc. use open-loop dryers. These models have the characteristics of fast temperature rise, large moisture discharge and fast drying speed. To dry fish of more than 10 cm long, it is recommended to use the new constant temperature dehumidification machine of Xingtai. This type of machine has the characteristics of high temperature dehumidification and good constant temperature effect. It is controlled in ten time periods and ensures that the dried fish will not deteriorate during the drying process. It is dry in medium and low temperature environment and has beautiful color.


◇◆  Product Parameter

Heat Pump Dryer

Model

DT1200HD

Power   input

40.0KW

Electric   heater

2x9.0KW

Power   supply

380-415V/3PH   or 460-480V/3PH, 50/60HZ

Rated   current

116.0A

Maximum   current

140.0A

Heating   capacity

84.0KW

Cooling   capacity

72.0KW

Level of   protection

IPX4

Dehumidify   capacity

100.0L/H

Suction   Max. pressure

≤0.75MPa

Exhaust   Max. pressure

≤3.0MPa

Noise

≤75dB(A)

Hot air   flow

76800-124800m³/H

Protection   Against electric shock

I

Certification

CE

Refrigerant

R134A / 4X4.5KG

Warranty

1 Year

Heat pump size

2200x1260x1585mm

Chamber   size

L11860xW3230xH2200mm

Whole Dimension

L14000xW3230xH2200mm

Loading   20ft container

56CBM

Weight

8000KG

Serial No.

/

Production   date

/

Drytech(Guangzhou)Technology   Co.,Ltd.


◇◆  Product Accessories
